To take OpenKM previsualization should configure several applications that are used for OpenKM by this purpose.


Nota clasica.png To preview documents you need to install Adobe Flash Player in your browser. Ensure you installed it before report a problem.

Configuration has two main steps:

Step 1 - Install OpenOffice or LibreOffice

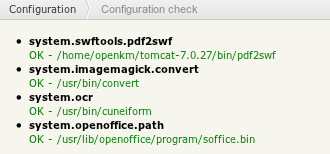

Configuration test:

Check configuration parameters.png

Log server indicating soffice service is started:

2012-07-01 10:23:14,578 [Thread-1] INFO  com.openkm.servlet.RepositoryStartupServlet - *** Start OpenOffice manager ***
2012-07-01 10:23:14,584 [Thread-1] INFO  com.openkm.util.DocConverter - *** Build Office Manager ***
2012-07-01 10:23:14,584 [Thread-1] INFO  com.openkm.util.DocConverter - system.openoffice.path=/usr/lib/libreoffice
2012-07-01 10:23:14,584 [Thread-1] INFO  com.openkm.util.DocConverter - system.openoffice.tasks=200
2012-07-01 10:23:14,584 [Thread-1] INFO  com.openkm.util.DocConverter - system.openoffice.port=2002
2012-07-01 10:23:14,616 [Thread-1] INFO  org.artofsolving.jodconverter.office.ProcessPoolOfficeManager - ProcessManager implementation is SigarProcessManager
2012-07-01 10:23:14,660 [OfficeProcessThread-0] INFO  org.artofsolving.jodconverter.office.OfficeProcess - starting process with acceptString 'socket,host=127.0.0.1,port=2002,tcpNoDelay=1' and profileDir '/tmp/.jodconverter_socket_host-127.0.0.1_port-2002'
2012-07-01 10:23:14,690 [OfficeProcessThread-0] INFO  org.artofsolving.jodconverter.office.OfficeProcess - started process; pid = 11198
2012-07-01 10:23:14,996 [net.sf.ehcache.CacheManager@26767bef] INFO  net.sf.ehcache.util.UpdateChecker - New update(s) found: 2.4.7 [http://www.terracotta.org/confluence/display/release/Release+Notes+Ehcache+Core+2.4]. Please check http://ehcache.org for the latest version.
2012-07-01 10:23:15,713 [net.sf.ehcache.CacheManager@78fa8ddf] INFO  net.sf.ehcache.util.UpdateChecker - New update(s) found: 2.4.7 [http://www.terracotta.org/confluence/display/release/Release+Notes+Ehcache+Core+2.4]. Please check http://ehcache.org for the latest version.
2012-07-01 10:23:20,762 [OfficeProcessThread-0] WARN  org.artofsolving.jodconverter.office.ManagedOfficeProcess - office process died with exit code 81; restarting it
2012-07-01 10:23:20,770 [OfficeProcessThread-0] INFO  org.artofsolving.jodconverter.office.OfficeProcess - starting process with acceptString 'socket,host=127.0.0.1,port=2002,tcpNoDelay=1' and profileDir '/tmp/.jodconverter_socket_host-127.0.0.1_port-2002'
2012-07-01 10:23:20,779 [OfficeProcessThread-0] INFO  org.artofsolving.jodconverter.office.OfficeProcess - started process; pid = 11208
2012-07-01 10:23:21,099 [OfficeProcessThread-0] INFO  org.artofsolving.jodconverter.office.OfficeConnection - connected: 'socket,host=127.0.0.1,port=2002,tcpNoDelay=1'

Step 2 - Install pdf2swf

  • Enable pdf to swf conversion, get more information at Application configuration > Enable PDF to SWF conversion.
  • In configuration parameters from administration there's a check button Check.png ( in older version is not used an icon is used a link called check ) that can be used to ensure your openoffice or libreoffice path are written correctly.
  • Ensure your browser has macromedia flash plugin.
  • To ensure all if fine, login openkm and try previewing some file.

Step 3 - Optional configurations

Aditional considerations about preview

OpenKM cache stores converted pdf and swf files into cache folder ( in administration configuration paramaters the parameter cache.home indicates the path used in your server ).
