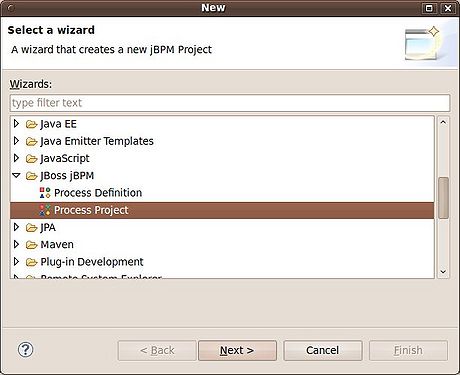

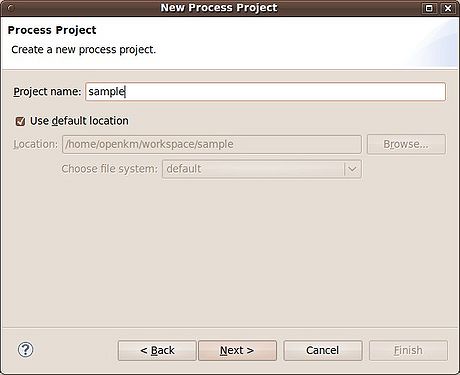

To create a new process definition, go to File → New → Other and select "Process Definition", but before you need to create a "Process Project". Will appear another form where you need to specify the source folder and the process name. Lets call it simply "hello".


Jbpm eclipse new 01.jpg
Jbpm eclipse new 02.jpg

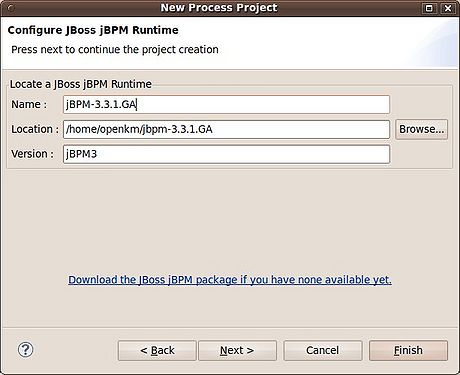

If is the first time you create a Process Definition, you have to configure the jBPM runtime. Remember the path of the jBPM library installation (See JBPM installation)


Jbpm eclipse new 03.jpg

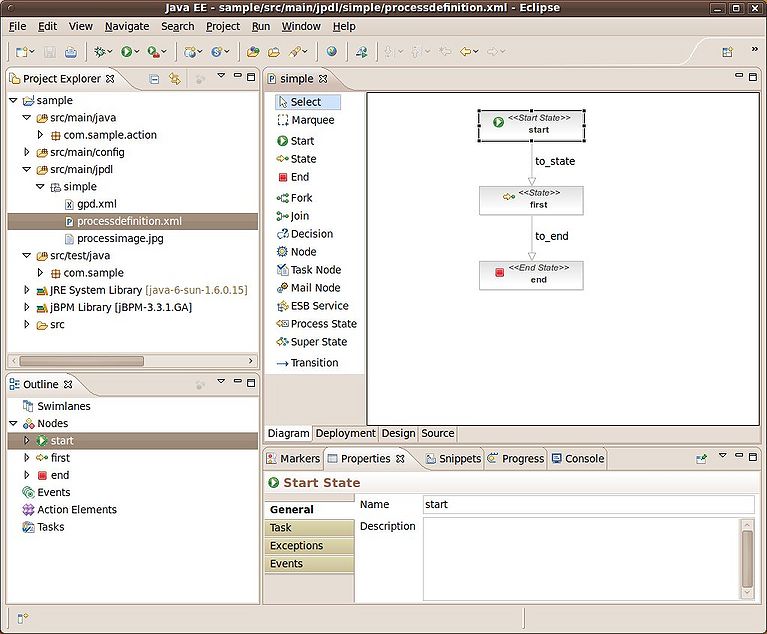

Once the wizard has finished, you can see an Eclipse environment with a central panel divided in four tabs:


Jbpm eclipse new 04.jpg

Nota clasica.png There is a new revision of the jBPM Eclipse plugin with some changes. They are described at:

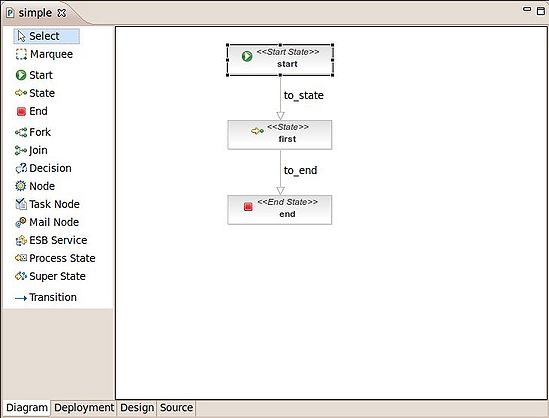

  • Diagram: This is the main work zone. Here you can construct your process definitions on a visual way.


Jbpm eclipse new 05.jpg

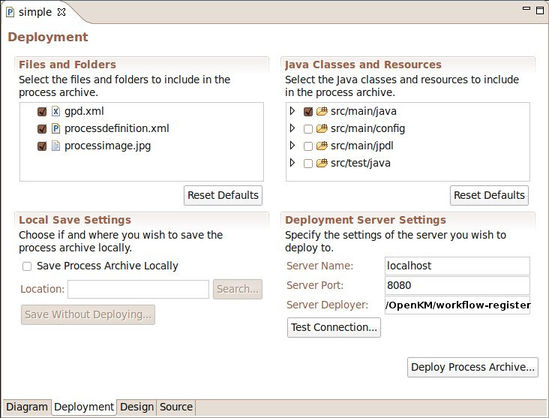

  • Deployment: Here you can deploy the created process definition directly to the server or save it to deploy manually. You can create a deployable archive going to "Local Save Settings" section, marking the "Save Process Archive Locally" option, selecting a location and clicking in the "Save Without Deploying..." button. The file extension should be ".par".


Jbpm eclipse new 06.jpg

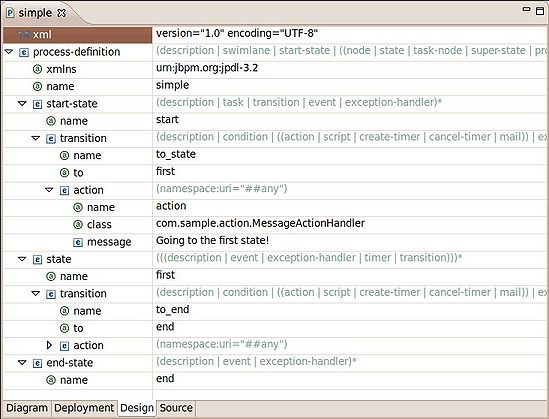

  • Design: Is the source code of the process definition. It is an hierarchical representation of the XML which describe the nodes and transitions. See jPDL xml schema chapter in jBPM jPDL User Guide for more info.


Jbpm eclipse new 07.jpg

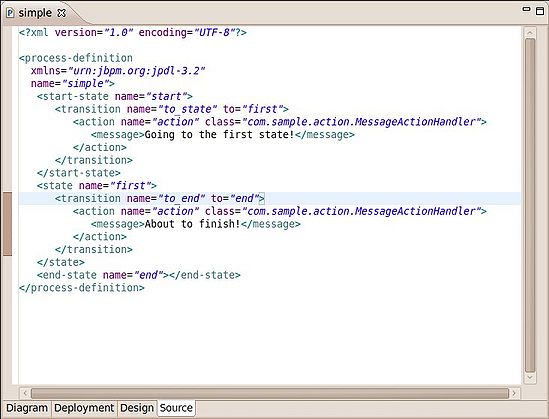

  • Source: Is the source code of the process definition. It is an XML which describe the nodes and transitions. See jPDL xml schema chapter in jBPM jPDL User Guide for more info.


Jbpm eclipse new 08.jpg
