Automatic key extraction full example

From OpenKM Documentation
Jump to: navigation, search

Nota advertencia.png Automatic key extraction was removed from OpenKM Community 6.2.4 and OpenKM Professional 6.2.15 due to obsolete and removed libraries.

Contents

SVN checkout modules

To creating KEA model must checkout openkm and thesaurus modules:

Select the svn type and type the url https://openkm.svn.sourceforge.net/svnroot/openkm/trunk/openkm to refer openkm:

Select the svn type and type the url https://openkm.svn.sourceforge.net/svnroot/openkm/trunk/thesaurus to refer thesaurus:

Installing openkm classes into maven repository

Ensure you've intalled openkm into your local maven repository, to ensure it you can execute the command:

mvn clean package install -Dmaven.test.skip=true

Donwloading AGROVOC thesaurus

We'll use agrovoc for testing purposes, you can downloading from http://oaei.ontologymatching.org/2007/environment/ please read terms of use.

Copy into thesaurus/src/test/resources/vocabulary folder the file ag_skos_20070219.rdf and agrovoc_oaei2007.owl

Into vocabulary folder there's testdocs folders are some agrovoc training docs to creating KEA module.

Create runtime configuration

Now we can create runtime configuration, it must be executed the ModelBuilder class with some params


Okm installation guide 004.jpeg


For training KEA module is needed execute ModelBuilder class with that params:

sourceFolder
trainingFolder
vocabularyFile
vocabularyType
stopwordFile
modelFileName
porterStemmerClass
stopwordClass
language
documentEncoding
testDocs ( optional )

In my case

sourceFolder=/home/jllort/softwareFactoryGalileo/thesaurus/vocabulary ( all path are relative to sourceFolder )
trainingFolder=testdocs/en/train
vocabularyFile=ag_skos_20070219.rdf
vocabularyType=skos
stopwordFile=stopwords_en.txt
modelFileName=ag_skos_20070219.model
porterStemmerClass=com.openkm.kea.stemmers.PorterStemmer
stopwordClass=com.openkm.kea.stopwords.StopwordsEnglish
language=en
documentEncoding=UTF-8
testDocs=testdocs/en/test

The params to execute ModelBuilder class are "/home/jllort/softwareFactoryGalileo/thesaurus/vocabulary testdocs/en/train ag_skos_20070219.rdf skos stopwords_en.txt ag_skos_20070219.model com.openkm.kea.stemmers.PorterStemmer com.openkm.kea.stopwords.StopwordsEnglish en UTF-8 testdocs/en/test" and VM argument "-Xmx526M" as you can see in next screenshot

Okm installation guide 005.jpeg


Classpath must be shown as


Okm installation guide 006.jpeg

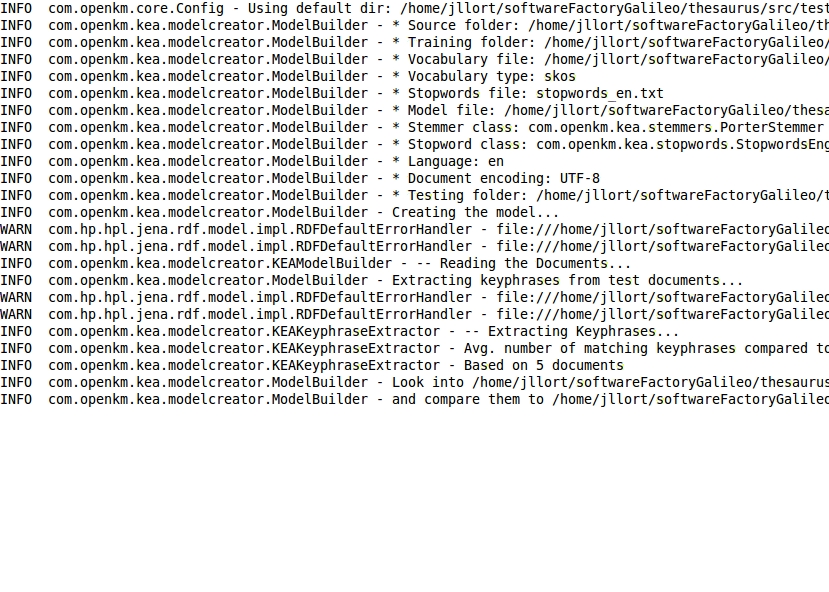

It all goes fine it has been generated into vocabulary folder a file called agrovoc_oaei2007.model


350

Copying vocabulary files into OpenKM

Create a folder called vocabulary int %JBOSS_HOME%, copy into files called ag_skos_20070219.rdf, agrovoc_oaei2007.owl, ag_skos_20070219.model, and stopwords_en.txt

Configuring OpenKM.cfg

Thesaurus configuration values

kea.thesaurus.owl.file=/vocabulary/agrovoc_oaei2007.owl
kea.thesaurus.base.url=http://www.fao.org/aos/agrovoc
kea.thesaurus.tree.root=SELECT DISTINCT UID, TEXT FROM {UID} Y {OBJECT}, {UID} rdfs:label {TEXT} ; [rdfs:subClassOf {CLAZZ}] where not bound(CLAZZ) and lang(TEXT)="en" USING NAMESPACE foaf=<http://xmlns.com/foaf/0.1/>, dcterms=<http://purl.org/dc/terms/>, rdf=<http://www.w3.org/1999/02/22-rdf-syntax-ns#>, owl=<http://www.w3.org/2002/07/owl#>, rdfs=<http://www.w3.org/2000/01/rdf-schema#>, skos=<http://www.w3.org/2004/02/skos/core#>, dc=<http://purl.org/dc/elements/1.1/>
kea.thesaurus.tree.childs=SELECT DISTINCT UID, TEXT FROM {UID} rdfs:subClassOf {CLAZZ}, {UID} rdfs:label {TEXT} where xsd:string(CLAZZ) = "RDFparentID" and lang(TEXT)="en" USING NAMESPACE foaf=<http://xmlns.com/foaf/0.1/>, dcterms=<http://purl.org/dc/terms/>, rdf=<http://www.w3.org/1999/02/22-rdf-syntax-ns#>, owl=<http://www.w3.org/2002/07/owl#>, rdfs=<http://www.w3.org/2000/01/rdf-schema#>, skos=<http://www.w3.org/2004/02/skos/core#>, dc=<http://purl.org/dc/elements/1.1/>


KEA model configuration values

kea.thesaurus.skos.file=/vocabulary/ag_skos_20070219.rdf
kea.thesaurus.vocabulary.serql=SELECT X,UID FROM {X} skos:prefLabel {UID} WHERE lang(UID) ="en" USING NAMESPACE rdf=<http://www.w3.org/1999/02/22-rdf-syntax-ns#>, skos=<http://www.w3.org/2004/02/skos/core#>,rdfs=<http://www.w3.org/2000/01/rdf-schema#>,dc=<http://purl.org/dc/elements/1.1/>, dcterms=<http://purl.org/dc/terms/>, foaf=<http://xmlns.com/foaf/0.1/>
kea.model.file=/vocabulary/ag_skos_20070219.model
kea.stopwords.file=/vocabulary/stopwords_en.txt
kea.automatic.keyword.extraction.number=10
kea.automatic.keyword.extraction.restriction=on

kea.automatic.keyword.extraction.restriction is an optional paramater to indicate that only words in thesaurus are enabled to be extracted.

Creating thesaurus

Login into OpenKM with some user with administrator grants, go to Administration tab and select Generate Thesaurus option. Then select the "show level" and execute the "send" option.


Okm installation guide 008.jpeg

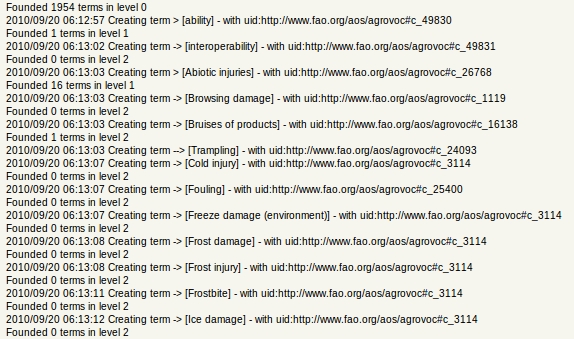

Please be patient it's needed some time to building all thesaurus. Depending your hardware configuration ( RAM ) could take some hours before process it'll be finishing.


Okm installation guide 009.jpeg

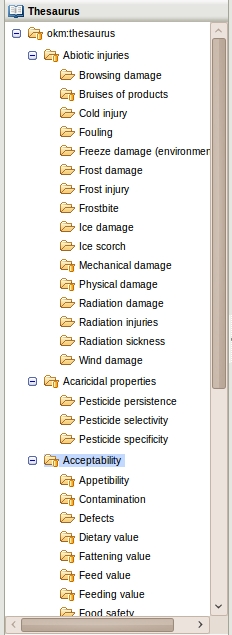

After finishing Thesarus creation in your desktop could see the thesaurus folders representation as is shown:


Okm installation guide 010.jpeg


Automatic key extraction in new uploaded document

Upload a new document, for example some document from testdocs/en/train

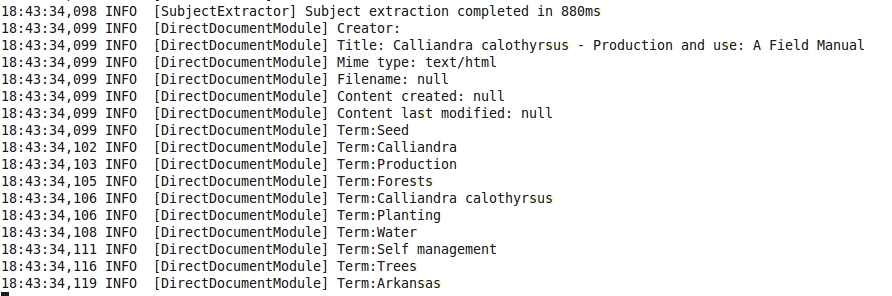

In your jboss console it'll appears something like this:


Okm installation guide 011.jpeg

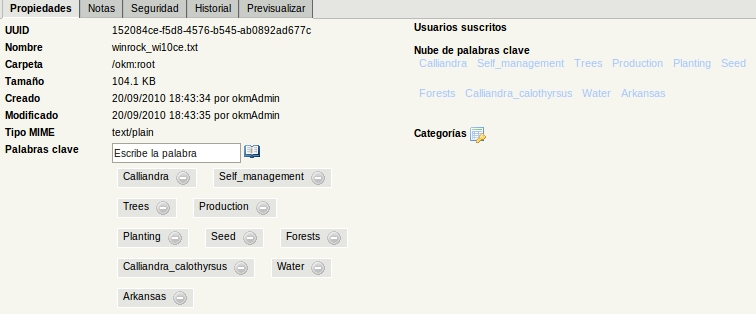

And in your OpenKM UI the extracted keywords as shown:


Okm installation guide 012.jpeg
